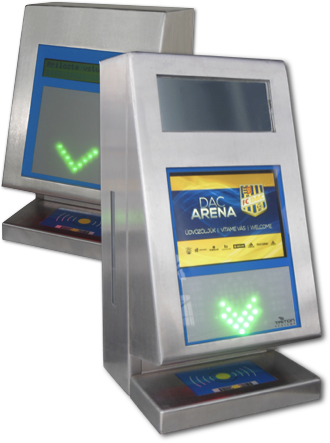

ARENA ENTRY CONTROL TERMINAL

New model series of sophisticated terminals
for stadium entry control

Robust, reliable and modular

» Vandal resistant stainless steel cabinet for horizontal or recessed horizontal or vertical installation in interior or exterior

» Uni-directional or bi-directional (one bi-directional terminal)


» Turnstile and adjacent gate control thanks to modular configuration construction of the terminal display panel designed for different identification media and individual user requirements

User friendly

» One backlit slot for all ISO or ISO-like barcode and QR code tickets

» Frontal RFID reader and barcode scanner installation for wrist identification media reading

» Multidirectional barcode reading without ticket size limitations

» Monochrome display and color monitor for transaction alerts or club logo and animation presentations

» LED pictograms and indications visible also in direct sunlight

» Automatic LED pictogram and color monitor brightness control

Arena Access Software


» Linux operating system

» State-of-the-art technology

» Allows via internet or mobile device:

Remote status control of connected devices and remote parameter optimization

Readable media

by entry control Terminal

RFID medium

RFID chip card with unique serial number

Smartphone

QR code displayed on smartphone

Paper ticket

Regular paper ticket with optional print

Print@home ticket

Ticket printed by the customer at the online purchase

Standard and optional configuration

RFID reader / writer of Mifare Standard or
RFID reader / writer - Legic technology

RFID reader / writer - other technologies 13.56MHz, NFC

RFID reader / writer - technology 125kHz and 134.2kHz

Omni-directional 1D and 2D ticket and smartphone barcode scanner

Three - color LED pictograms in the shape of arrows and crosses or
Five-color LED indication of discount tickets and permanent passes,
indication of a risk person found by the FRS (Face Recognition System)

Automatic LED pictogram and indication brightness control

Acoustic indication of discount tickets

Integrated 64-bit industrial computer control unit
Additional display-control panel for the operator

Additional operator control panel equipped with barcode scanner and RFID reader (for high turnstiles)

Camera for visitor - ticket pairing with FRS preparation

Additional terminal with optional lighting, manual or automatic brightness control

Stainless steel cover protecting the terminal against street vandalism
(for high turnstile terminal)

Technical specifications

Dimensions: according to terminal type
Weight: cca 7 kg

vandalism resistant abrasive stainless steel, 2 mm thickness

IP44, IP54 for terminals without slots

-10 ° C to +70 ° C (barcode scanner w/o cooling -10 ° C to +50 ° C, FRS camera -10 ° C to +50 ° C)


* Depending on the configuration - more info upon request

13.56 MHz - MIFARE® Standard, LEGIC RF Standard: Legic Prime. 125/134 kHz - ISO 18000-2: Hitag 1. For other technologies, contact the supplier

Ethernet (10/100 Mbps), 8x RS232C, 4x USB 2.0, external I / O (6-12x galvanically isolated inputs, 8-14 OC outputs (500mA, 30V), 4 relay outputs com nc/no, 1A, 60Vdc))

5V dc / 1 to 4A, 12V dc / 3 to 6A according to configuration
